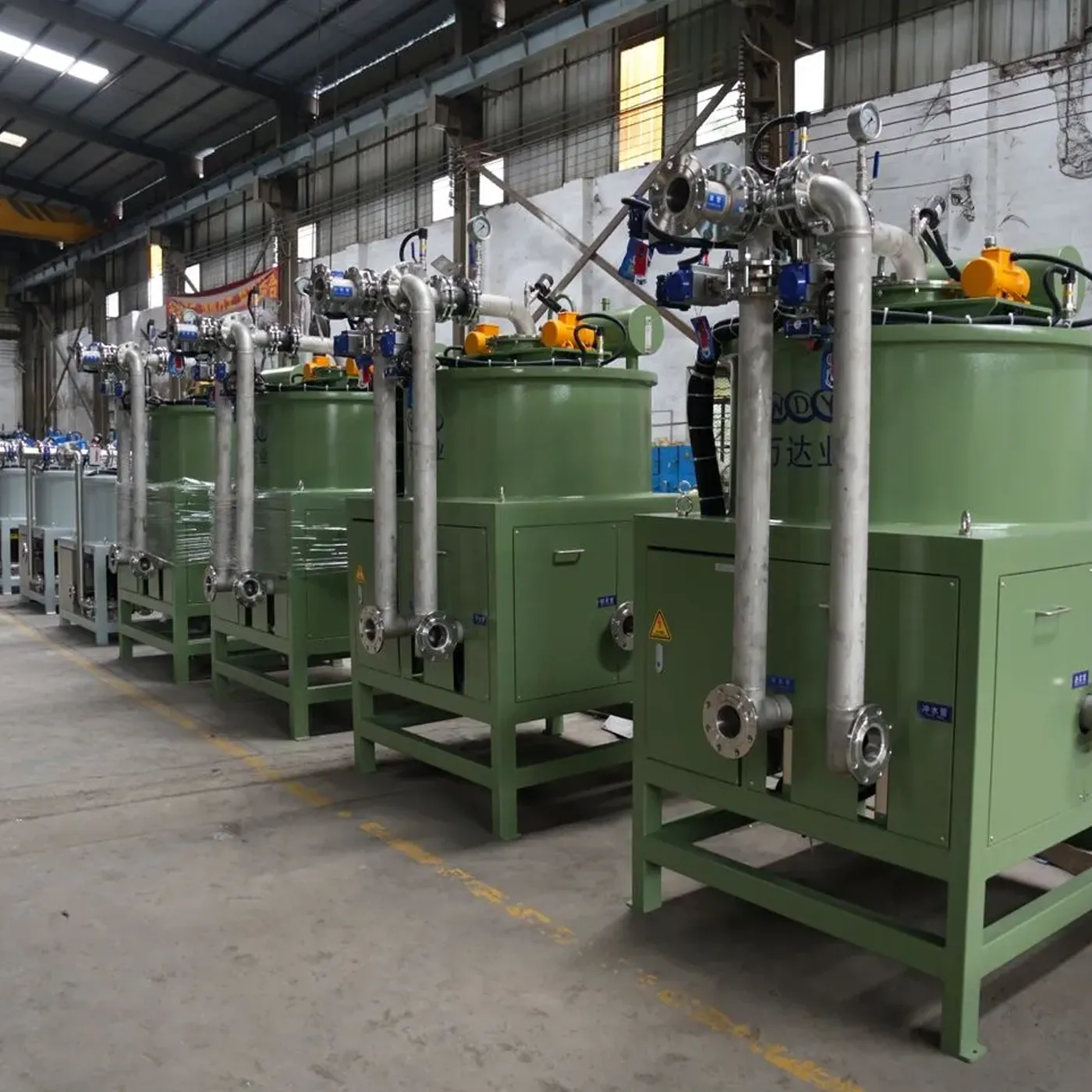

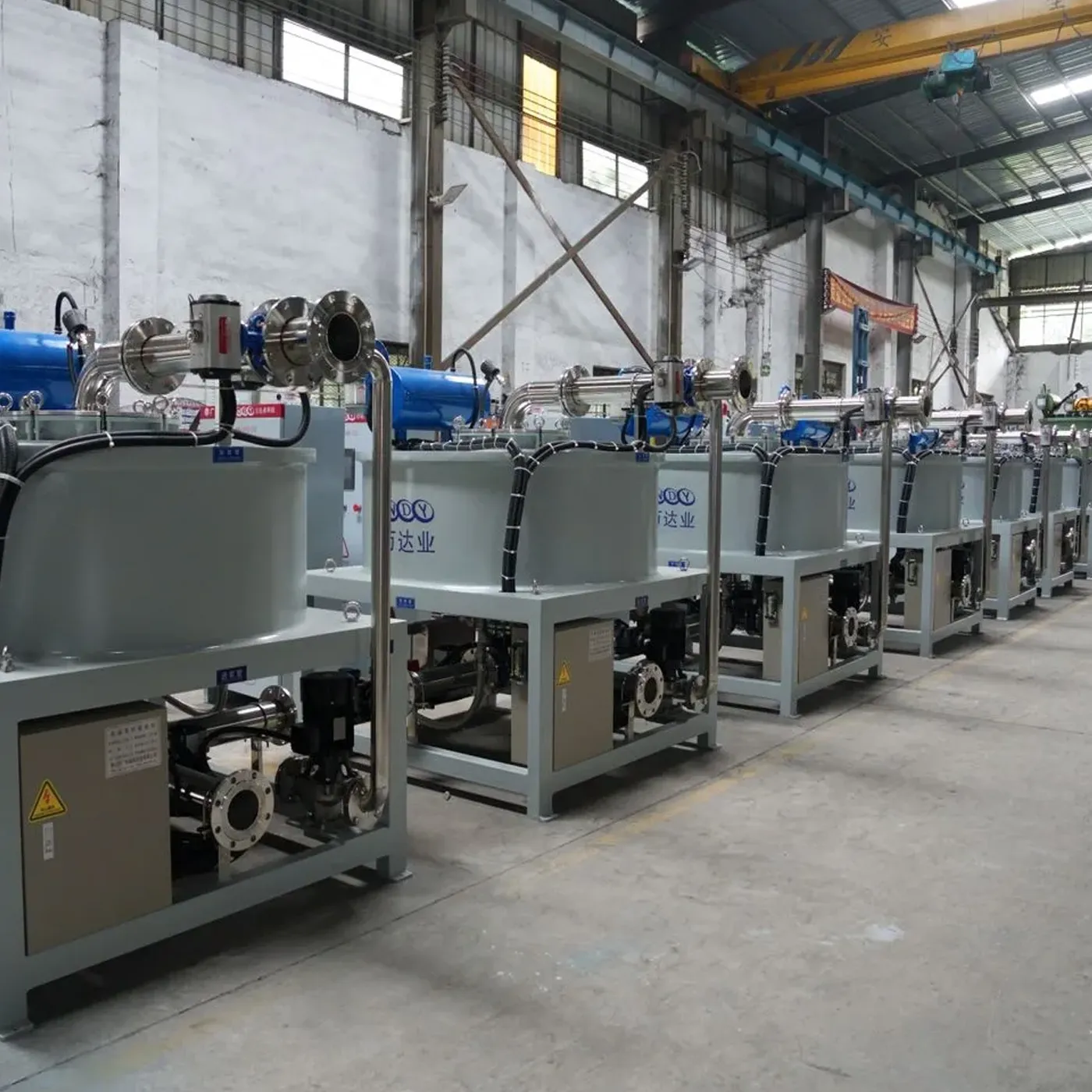

Electromagnetic Slurry Separator Series

Electromagnetic Slurry Separator Series

1. Water and oil dual cooling, stable performance. 2. Intelligent control, there is no need to manual operation. 3. Magnetic circuit design science, magnetic field gradient is high. 4. Energy saving and high efficiency has good separating effect.

Product Series

Belt Conveyor Type Magnetic Separator Series

Electromagnetic Dried-powder Separator Series

Electromagnetic Slurry Separator Series

Magnetic Drawer Type Separator Series

New Type Electromagnetic Powder Magnetic Separator Series

New Type Electromagnetic Slurry Magnetic Separator Series

Permanent Magnet Wet Magnetic Iron Removal Machine Series

Program Controlled Automatic Oil-cooling Electromagnetic Slurry Separator Series

Program Controlled Automatic Water-cooling Electromagnetic Slurry Separator Series

Vertical Ring High Gradient Magnetic Separator Series

Product Description
Advantages
Technical Parameters

Product Characteristics

This machine has high intensity magnetic field and high gradient magnetic field, and the magnetic field distribute evenly. It has an obvious efficiency in iron remove. Applying water to cool the machine, it can decrease the temperature about 20℃, enhanced the life span of the coil. Brake valve applying the import material, the valve have a good quality and can be durable. When you closed the valve, there is no slurry effusion. The netting is made from the special material. When the current of the loop is switched off, there is no residual magnetism, so it is very easy to discharge the iron.

Application Scope

Electromagnetic slurry separators are widely used in ceramic, glass, chemical, electronic, food, medicine and other industries glaze materials, iron and impurities, magnetic separation and separation.

Water and oil dual cooling, stable performance.
Intelligent control, there is no need to manual operation.
Magnetic circuit design science, magnetic field gradient is high.
Energy saving and high efficiency has good separating effect.

Model	Rated Voltage	Max Coil Power	Rated Background Magnetic Field	Magnetic cavity diameter	Ore-feeding size	Yield	Pipe size	Machine weight	DimensionLxWxH（mm）
WJ89S-B-V-3	380 V	3 KW	0.6 T	89 mm	≥20 mesh	0.5-2 m³/h	1 in	280 KG	854x750x1009
WJ160S-B-V-1.5	380 V	1.5 KW	0.6 T	160 mm	≥20 mesh	1-5 m³/h	2 in	180 KG	740x680x1134
WJ160S-B-V-3	380 V	3 KW	0.6 T	160 mm	≥20 mesh	1-5 m³/h	2 in	400 KG	660x630x1023
WJ220B-V-3	380 V	3 KW	0.6 T	220 mm	≥20 mesh	5-10 m³/h	2 in	800 KG	1326x1167x1452
WJ300-V-7	380 V	7 KW	0.8 T	300 mm	≥20 mesh	10-30 m³/h	3 in	1070 KG	1522x1260x1608
